Description

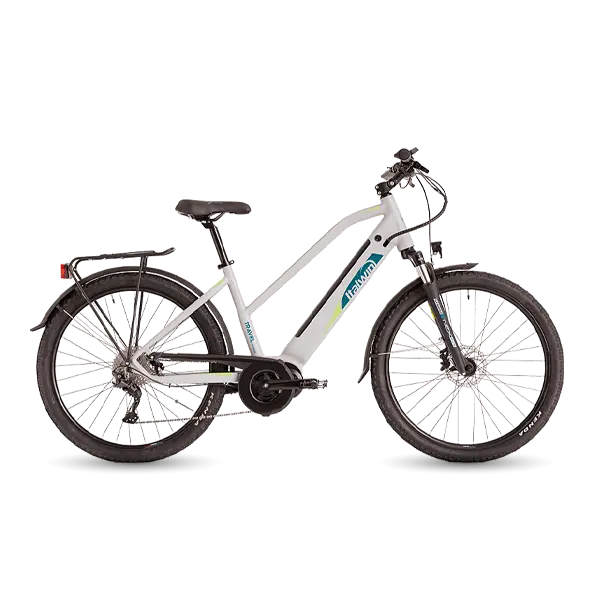

Travel Adventure is the travel companion for every type of route, from paved roads to dirt roads. A comfortable riding position e-bike with a suspension fork that absorbs bumps and Kenda wide-tread tires. The efficient FIVE F90 motor offers excellent power without compromise. But that’s not all, equipped with a 10-speed Shimano Deore gearbox, hydraulic disc brakes and a comfortable Selle Bassano seat, Travel Adventure meets the wishes of every cyclist.
DOWNLOAD BROCHURE
Choose an optionUnisexMan |
|
Choose an optionAnthraciteLight grey |
|
Choose an option576 Wh |
|
|
Performance and Tech
Integrated waterproof battery
The battery and the charging plug are fully integrated into the frame with IPX5 protection level from water and dust to avoid damage. Easy charging by removing the battery.
FIVE F90 central motor
FIVE F90 is the central motor for a safe and fun drive, both in the city and on trips out of town. Equipped with exceptional boost, FIVE F90 delivers power to deal with slopes up to 30%.
Knobby tires with widetread section
Maximum grip and stability thanks to the Kenda 2.1“ wide-tread tires. The knobby tread allows you to ride safely off-road, even on rough paths.
3.5″ LCD display
With backlighting, this display allows you to turn the system on and off, select assistance levels, activate soft start, and check battery life. It is equipped with a USB port for charging a smartphone.
Technical specifications
TRANSMISSION
Chain KMC special e-bike
FRAME HXL
Hydroformed aluminium 46×62 cm
WHEELS
27,5” x 2,1” Kenda
MOTOR
Central FIVE F90 250W/90Nm
WEIGHT (EXCLUDING BATTERY)
25 kg
BRAKES
Front and rear hydraulic disc brake
SPEED
Max 25 km/h
SADDLE
Selle Bassano
FRONT FORK
Suspended and lockable 63 mm Suntour SF NEX E25
GEAR
10-speed Shimano Deore 11-36T
PEDALLING SENSOR
Torque sensor
LIGHTS
Front and rear LED
BATTERY PROTECTION LEVEL
From water and dust IPX5
OPTIONAL GPS
Set-up
DISPLAY
Backlight LCD: 5 levels of motor assist and soft start device, USB socket
| Unisex M |
Man M |
|
| Frame height mm (a) | 460 | 460 |
| Top Tube Horizontal mm (b) | 620 | 620 |
| Head Tube Length mm (c) | 210 | 210 |
| Head Tube Angle (d) | 69° | 69° |
| Seat Tube Angle (e) | 72° | 72° |
| REACH mm | 396,7 | 396,7 |
| STACK mm | 687,9 | 687,9 |
| Rear End Length mm (f) | 490 | 490 |
| Wheelbase mm (g) | 1166,9 | 1166,9 |
